Name: Dainty Air Conditioning Products Aluminum Flanged Motorized Damper 24" - AMD 24 the perfect
SKU: Air Conditioning Products WBB771610
Price: 94.99 USD
Availability: InStock

Sale!

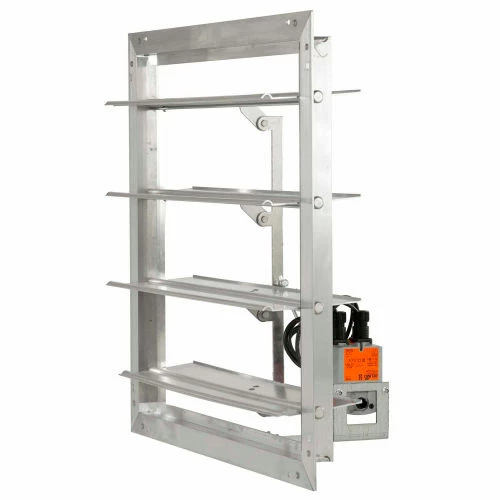

Air Conditioning Products Aluminum Flanged Motorized Damper 24" - AMD 24

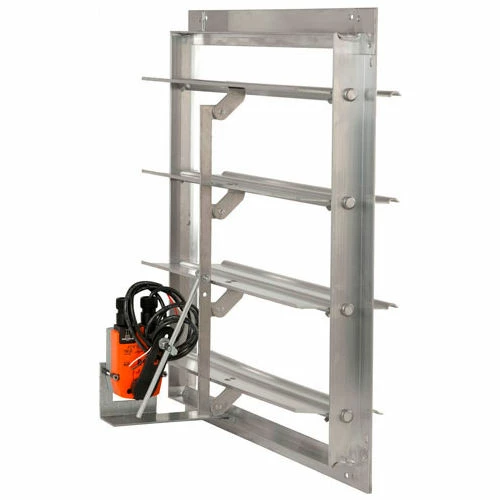

Air Conditioning Products Aluminum Flanged Motorized Damper 24" - AMD 24 - Image 2

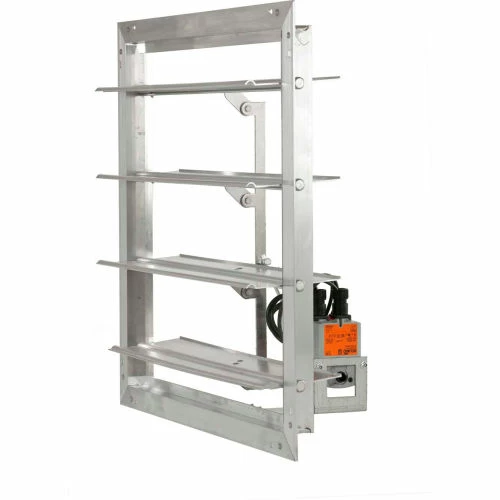

Air Conditioning Products Aluminum Flanged Motorized Damper 24" - AMD 24 - Image 3

Original price was: $464.95.Current price is: $94.99.

SKU: Air Conditioning Products WBB771610 Categories: Dampers, HVAC Hardware & Parts Tags: 1, 24" Exhaust or Supply Fans, Air Conditioning Products, Aluminum, AMD 24, HVAC & Fans, Motorized, Vertical or Horizontal

Safe Payments, Happy Customers
Shop quality, shop with us.
Control the delivery date and try to deliver it in the fastest time
Satisfaction Guaranteed

Heavy duty motorized volume control dampers. The 1-1/2″ flanged frame has welded corners for added strength. The 6″ wide blades are center-pivoted for a full 90 degree rotation with parallel blade action. The stainless steel jamb seals help in keeping out light, air, and moisture. The dampers can be used for exhaust or supply applications and can be mounted in either a vertical or horizontal position; typically walls or curbs. Comes standard with an internally mounted factory installed 100-240 volt power open / spring close motor with end switches.

MADE IN THE USA

Max Velocity	3500 ft/min
Number of Panels	1
Brand	Air Conditioning Products
Manufacturers Part Number	AMD 24
Material	Aluminum
Mounting Location	Vertical or Horizontal
For Use With	24" Exhaust or Supply Fans
Type	Motorized
Width	24 in
Weight	17 lbs
Depth	9 in
Diameter	24 in
Height	24 in
Free Area	3.59 ft³
Max Pressure In W.G.	4 in
Rough Opening	25 x 25 in
Warranty	1 yr
