Air Conditioning Products Aluminum Flanged Motorized Damper 60" - AMD-60

Air Conditioning Products Aluminum Flanged Motorized Damper 60" - AMD-60 - Image 2

Air Conditioning Products Aluminum Flanged Motorized Damper 60" - AMD-60 - Image 3

Original price was: $530.00.Current price is: $91.99.

SKU: Air Conditioning Products WBB1249560 Categories: Dampers, HVAC Hardware & Parts Tags: 2, Air Conditioning Products, Aluminum, AMD-60, HVAC & Fans, Mill Finish, Motorized, Vertical or Horizontal

Safe Payments, Happy Customers
Shop quality, shop with us.
Control the delivery date and try to deliver it in the fastest time
Satisfaction Guaranteed

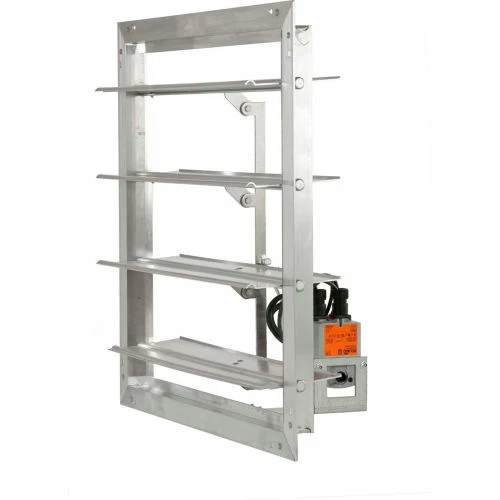

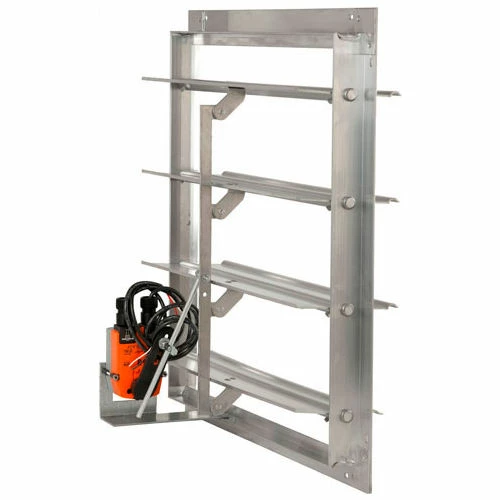

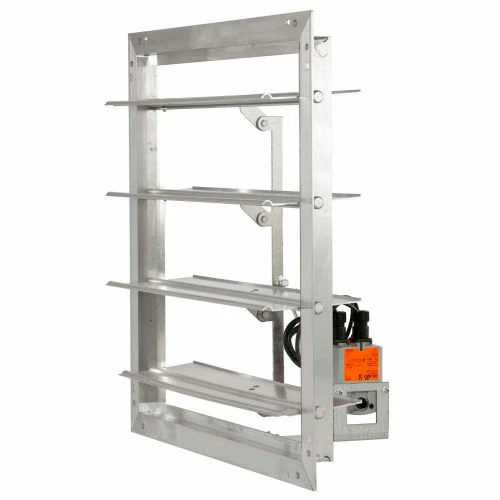

Flanged Frame – Models AMD and GMD are heavy duty motorized volume control dampers. The 1-1/2″ flanged frame has welded corners for added strength. The 6″ wide blades are center-pivoted for a full 90 degree rotation with parallel blade action. The stainless steel jamb seals help in keeping out light, air, and moisture. The dampers can be used for exhaust or supply applications and can be mounted in either a vertical or horizontal position; typically walls or curbs. Available in Extruded Aluminum (AMD) or Galvanized Steel (GMD) and comes standard with an internally mounted factory installed 24-240 volt power open / spring close motor with end switches.

MADE IN THE USA

Max Velocity	3500 ft/min
Width	63 in
Brand	Air Conditioning Products
Manufacturers Part Number	AMD-60
Material	Aluminum
Finish	Mill Finish
Mounting Location	Vertical or Horizontal
Type	Motorized
Number of Panels	2
Depth	10-1/4 in
Weight	101 lbs
Diameter	60 in
Height	63 in
Inside Height	60 in
Free Area	23.31 ft³
Inside Width	60 in
Max Pressure In W.G.	4 in
Rough Opening	61W x 61H in
Warranty	1 yr
