Air Conditioning Products Aluminum Hat Channel Motorized Damper 36" - ACD 36

Original price was: $423.00.Current price is: $97.99.

SKU: Air Conditioning Products WBB771487 Categories: Dampers, HVAC Hardware & Parts Tags: 1, ACD 36, Air Conditioning Products, Aluminum, HVAC & Fans, Motorized, Vertical or Horizontal

Safe Payments, Happy Customers
Shop quality, shop with us.
Control the delivery date and try to deliver it in the fastest time
Satisfaction Guaranteed

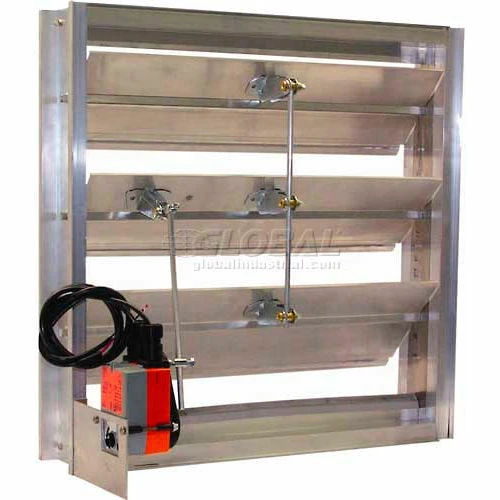

The Hat Channel is an extruded aluminum motorized volume control damper. The hat channel frame is 5″ deep with 7″ wide center-pivoted blades for a full 90 degree rotation with parallel blade action. The TPV blade and stainless steel jamb seals help in keeping out light, air, and moisture. The dampers can be used for exhaust or supply applications and can be mounted in a vertical or horizontal position; typically walls, curbs, or ductwork. Comes standard with an internally mounted factory installed 100-240 volt power open / spring close motor with an end switch.

MADE IN THE USA

Max Velocity	3500 ft/min
Weight	25 lbs
Rough Opening	36 x 36 in
Max Pressure In W.G.	4 in
Free Area	7.56 ft³
Height	35-3/4 in
Diameter	36 in
Depth	11-1/2 in
Width	35-3/4 in
Type	Motorized
Number of Panels	1
Mounting Location	Vertical or Horizontal
Material	Aluminum
Manufacturers Part Number	ACD 36
Brand	Air Conditioning Products
Warranty	1 yr
