Name: Excellent quality and Fashionable - Air Conditioning Products Aluminum Hat Channel Motorized Damper 42" - ACD 42
SKU: Air Conditioning Products WBB771514
Price: 96.99 USD
Availability: InStock

Sale!

Air Conditioning Products Aluminum Hat Channel Motorized Damper 42" - ACD 42

Original price was: $432.00.Current price is: $96.99.

SKU: Air Conditioning Products WBB771514 Categories: Dampers, HVAC Hardware & Parts Tags: 1, ACD 42, Air Conditioning Products, Aluminum, HVAC & Fans, Motorized, Vertical or Horizontal

Safe Payments, Happy Customers
Shop quality, shop with us.
Control the delivery date and try to deliver it in the fastest time
Satisfaction Guaranteed

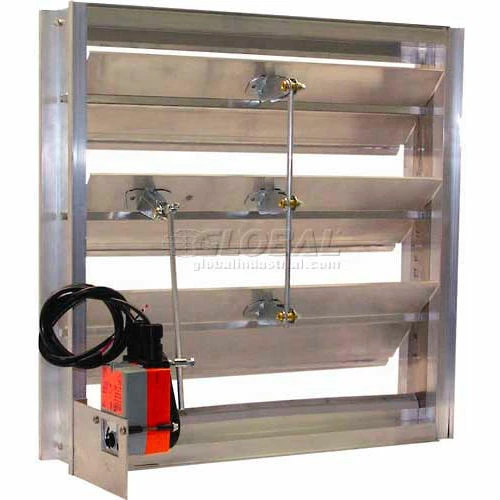

The Hat Channel is an extruded aluminum motorized volume control damper. The hat channel frame is 5″ deep with 7″ wide center-pivoted blades for a full 90 degree rotation with parallel blade action. The TPV blade and stainless steel jamb seals help in keeping out light, air, and moisture. The dampers can be used for exhaust or supply applications and can be mounted in a vertical or horizontal position; typically walls, curbs, or ductwork. Comes standard with an internally mounted factory installed 100-240 volt power open / spring close motor with an end switch.

MADE IN THE USA

Max Velocity	3500 ft/min
Weight	34 lbs
Rough Opening	42 x 42 in
Max Pressure In W.G.	4 in
Free Area	10.49 ft³
Height	41-3/4 in
Diameter	42 in
Depth	11-1/2 in
Width	41-3/4 in
Number of Panels	1
Type	Motorized
Mounting Location	Vertical or Horizontal
Material	Aluminum
Manufacturers Part Number	ACD 42
Brand	Air Conditioning Products
Warranty	1 yr
