Air Conditioning Products Combination Louver / Damper with Flange 24" - ACL-F 24

Air Conditioning Products Combination Louver / Damper with Flange 24" - ACL-F 24 - Image 2

Air Conditioning Products Combination Louver / Damper with Flange 24" - ACL-F 24 - Image 3

Air Conditioning Products Combination Louver / Damper with Flange 24" - ACL-F 24 - Image 4

Air Conditioning Products Combination Louver / Damper with Flange 24" - ACL-F 24 - Image 5

Original price was: $531.00.Current price is: $97.99.

SKU: Air Conditioning Products WBB771623 Categories: HVAC Hardware & Parts, Louvers & Vents Tags: 1, ACL-F 24, Air Conditioning Products, Aluminum, HVAC & Fans, Intake or Exhaust, Vertical

Safe Payments, Happy Customers
Shop quality, shop with us.
Control the delivery date and try to deliver it in the fastest time
Satisfaction Guaranteed

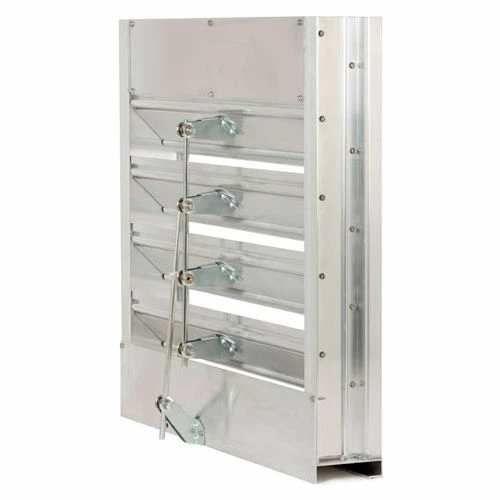

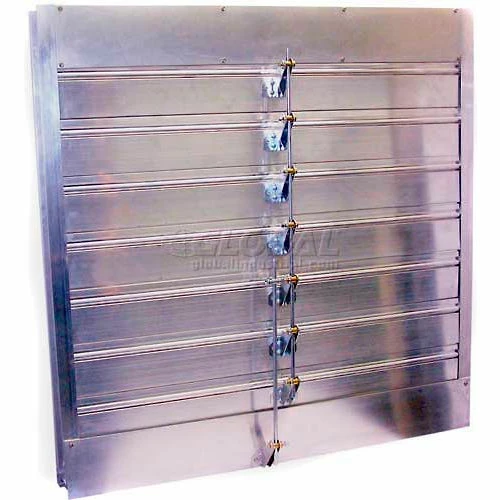

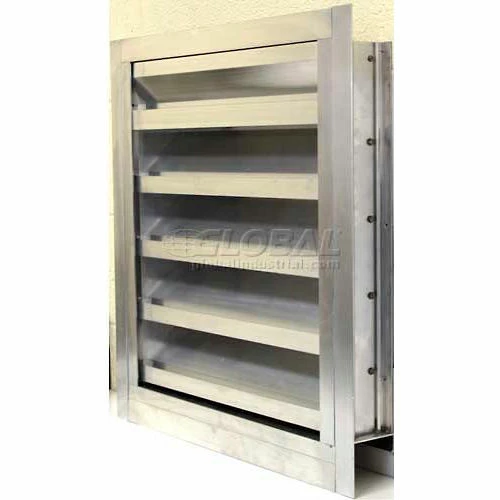

Combination Louver / Damper offers superior resistance to rain and weather while also offering you the ability to completely close the opening off if needed. The channel frame is 4″ deep with a 1-1/2″ flange and drainable 45 degree fixed blades in the front with adjustable blades with seals for tight shutoff in the back all within one frame. The adjustable rear blades are operated with a thumb screw and come standard with birdscreen on the back.

MADE IN THE USA

Nominal Size	24 x 24 in
Max Velocity	1250 – Water Penetration ft/min
Weight	22 lbs
Rough Opening	24W x 24H in
Inside Width	23-1/2 in
Free Area	1.35 ft³
Inside Height	23-1/2 in
Height	23-1/2 in
Depth	4 in
Number of Panels	1
Type	Intake or Exhaust
Mounting Location	Vertical
Material	Aluminum
Manufacturers Part Number	ACL-F 24
Brand	Air Conditioning Products
Warranty	1 yr
