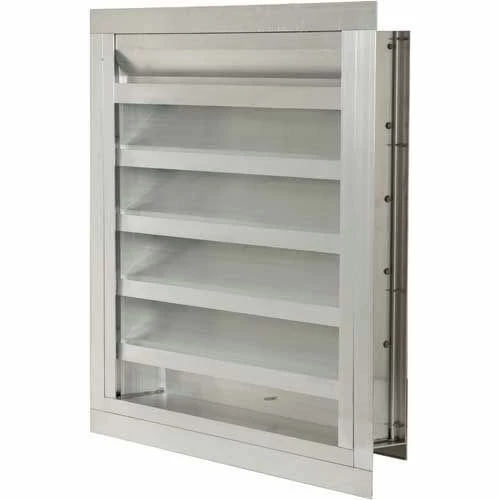

Air Conditioning Products Combination Louver / Damper with Flange 24"W x 36"H - ACL-F-24x36

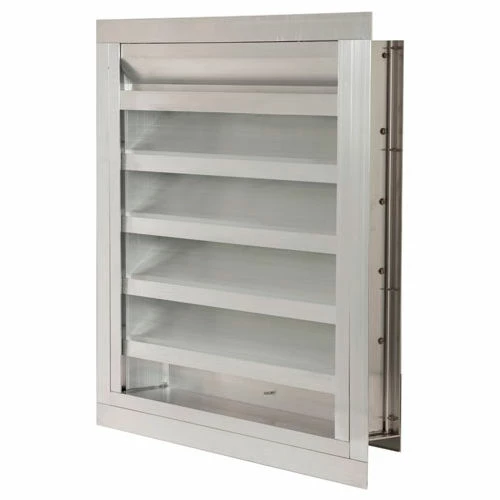

Air Conditioning Products Combination Louver / Damper with Flange 24"W x 36"H - ACL-F-24x36 - Image 2

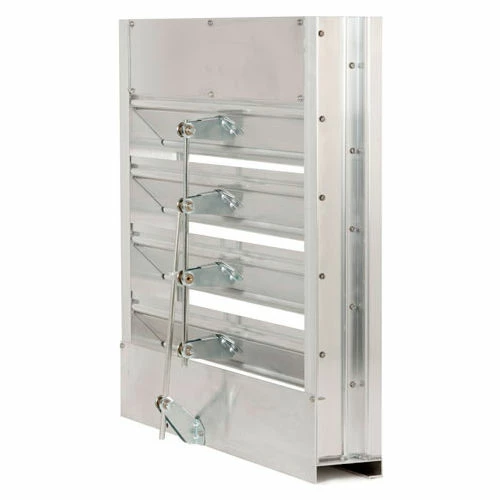

Air Conditioning Products Combination Louver / Damper with Flange 24"W x 36"H - ACL-F-24x36 - Image 3

Original price was: $585.00.Current price is: $97.99.

SKU: Air Conditioning Products WBB1249575 Categories: HVAC Hardware & Parts, Louvers & Vents Tags: 1, Air Conditioning Products, Aluminum, HVAC & Fans, Intake or Exhaust, Mill Finish, Vertical

Safe Payments, Happy Customers
Shop quality, shop with us.
Control the delivery date and try to deliver it in the fastest time
Satisfaction Guaranteed

Combination Louver / Damper – The Model ACL offers superior resistance to rain and weather while also offering you the ability to completely close the opening off if needed. The channel frame is 4″ deep with a 1-1/2″ flange and drainable 45 degree fixed blades in the front with adjustable blades with seals for tight shutoff in the back all within one frame. The adjustable rear blades are operated with a thumb screw and come standard with birdscreen on the back.

MADE IN THE USA

Nominal Size	24 x 36 in
Width	26-1/2 in
Brand	Air Conditioning Products
Material	Aluminum
Finish	Mill Finish
Mounting Location	Vertical
Number of Panels	1
Type	Intake or Exhaust
Depth	4 in
Max Velocity	1118 FPM – Water Penetration ft/min
Height	38-1/2 in
Inside Height	35-1/2 in
Free Area	2.42 ft³
Inside Width	23-1/2 in
Rough Opening	24W x 36H in
Weight	33 lbs
Warranty	1 yr
