Air Conditioning Products Combination Louver / Damper with Flange 48"W x 36"H - ACL-F-48x36

Air Conditioning Products Combination Louver / Damper with Flange 48"W x 36"H - ACL-F-48x36 - Image 2

Air Conditioning Products Combination Louver / Damper with Flange 48"W x 36"H - ACL-F-48x36 - Image 3

Original price was: $564.00.Current price is: $93.99.

SKU: Air Conditioning Products WBB1249582 Categories: HVAC Hardware & Parts, Louvers & Vents Tags: 1, Air Conditioning Products, Aluminum, HVAC & Fans, Intake or Exhaust, Mill Finish, Vertical

Safe Payments, Happy Customers
Shop quality, shop with us.
Control the delivery date and try to deliver it in the fastest time
Satisfaction Guaranteed

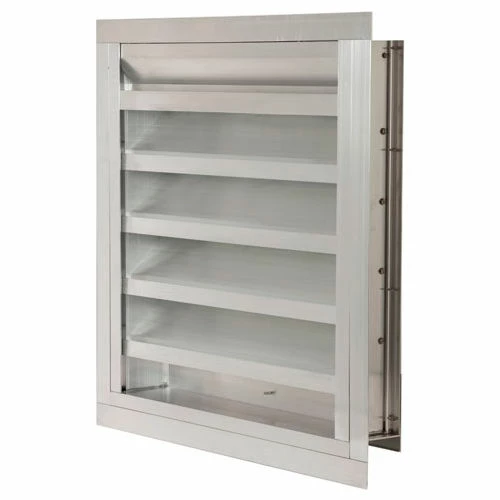

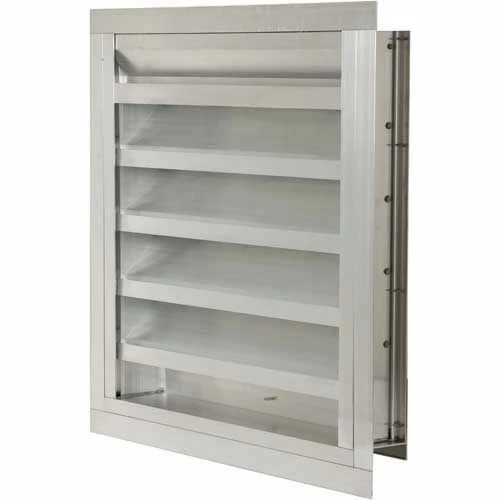

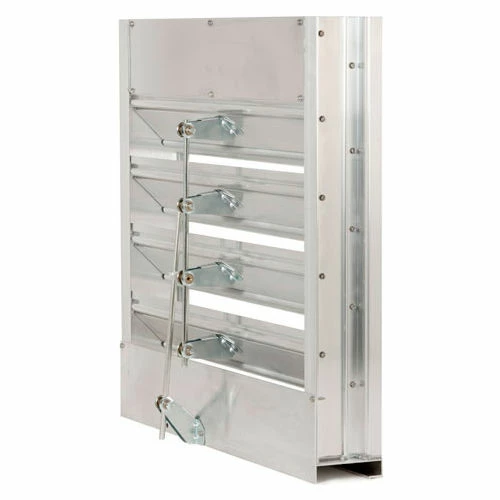

Combination Louver / Damper – The Model ACL offers superior resistance to rain and weather while also offering you the ability to completely close the opening off if needed. The channel frame is 4″ deep with a 1-1/2″ flange and drainable 45 degree fixed blades in the front with adjustable blades with seals for tight shutoff in the back all within one frame. The adjustable rear blades are operated with a thumb screw and come standard with birdscreen on the back.

MADE IN THE USA

Nominal Size	48 x 36 in
Width	50-1/2 in
Brand	Air Conditioning Products
Material	Aluminum
Finish	Mill Finish
Mounting Location	Vertical
Type	Intake or Exhaust
Number of Panels	1
Depth	4 in
Max Velocity	1118 FPM – Water Penetration ft/min
Height	38-1/2 in
Inside Height	35-1/2 in
Free Area	5.18 ft³
Inside Width	47-1/2 in
Rough Opening	48W x 36H in
Weight	58 lbs
Warranty	1 yr
