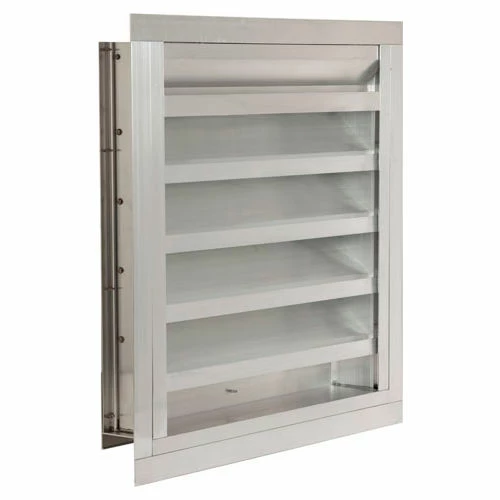

Air Conditioning Products Drainable Blade Fixed Louver with Flange 12"W x 12"H - DFL-F-12x12

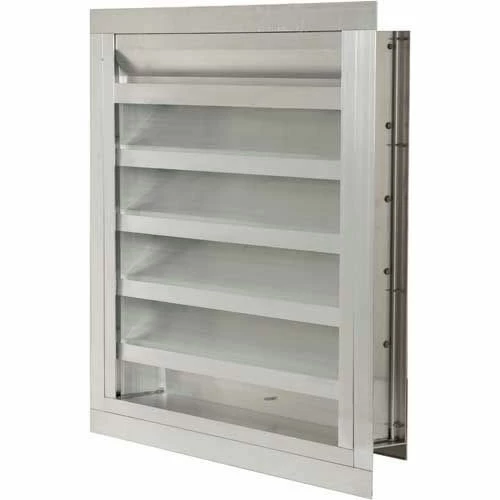

Air Conditioning Products Drainable Blade Fixed Louver with Flange 12"W x 12"H - DFL-F-12x12 - Image 2

Air Conditioning Products Drainable Blade Fixed Louver with Flange 12"W x 12"H - DFL-F-12x12 - Image 3

Original price was: $242.95.Current price is: $97.99.

SKU: Air Conditioning Products WBB1249553 Categories: HVAC Hardware & Parts, Louvers & Vents Tags: 1, Air Conditioning Products, Aluminum, DFL-F-12x12, HVAC & Fans, Intake or Exhaust, Mill Finish, Vertical

Safe Payments, Happy Customers
Shop quality, shop with us.
Control the delivery date and try to deliver it in the fastest time
Satisfaction Guaranteed

Drainable Blade Fixed Louvers – The Model DFL offers excellent resistance to rain and weather. The drainable blade design channels water away from the blades and down the jambs. This eliminates water cascading from blade to blade. The channel frame is 4″ deep with a 1-1/2″ flange and drainable 37-45 degree blades. Comes standard with a birdscreen on the back.

Made in the USA

Nominal Size	12 x 12 in
Type	Intake or Exhaust
Brand	Air Conditioning Products
Manufacturers Part Number	DFL-F-12×12
Material	Aluminum
Finish	Mill Finish
Mounting Location	Vertical
Number of Panels	1
Width	14-1/2 in
Max Velocity	1031 FPM – Water Penetration ft/min
Depth	4 in
Height	14-1/2 in
Inside Height	11-1/2 in
Free Area	0.3 ft³
Inside Width	11-1/2 in
Rough Opening	12W x 12H in
Weight	10 lbs
Warranty	1 yr
