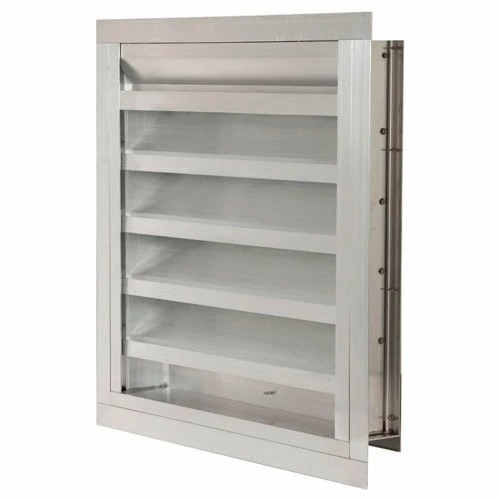

Air Conditioning Products Drainable Blade Fixed Louver with Flange 36"W x 24"H - DFL-F-36x24

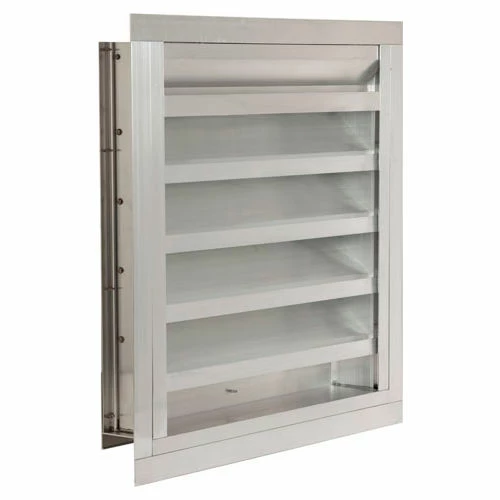

Air Conditioning Products Drainable Blade Fixed Louver with Flange 36"W x 24"H - DFL-F-36x24 - Image 2

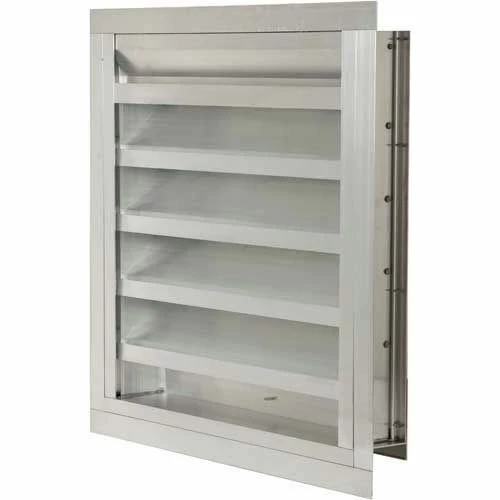

Air Conditioning Products Drainable Blade Fixed Louver with Flange 36"W x 24"H - DFL-F-36x24 - Image 3

Original price was: $415.95.Current price is: $91.99.

SKU: Air Conditioning Products WBB1249551 Categories: HVAC Hardware & Parts, Louvers & Vents Tags: 1, Air Conditioning Products, Aluminum, DFL-F-36x24, HVAC & Fans, Intake or Exhaust, Mill Finish, Vertical

Safe Payments, Happy Customers
Shop quality, shop with us.
Control the delivery date and try to deliver it in the fastest time
Satisfaction Guaranteed

Drainable Blade Fixed Louvers – The Model DFL offers excellent resistance to rain and weather. The drainable blade design channels water away from the blades and down the jambs. This eliminates water cascading from blade to blade. The channel frame is 4″ deep with a 1-1/2″ flange and drainable 37-45 degree blades. Comes standard with a birdscreen on the back.

Made in the USA

Nominal Size	36 x 24 in
Number of Panels	1
Brand	Air Conditioning Products
Manufacturers Part Number	DFL-F-36×24
Material	Aluminum
Finish	Mill Finish
Mounting Location	Vertical
Type	Intake or Exhaust
Width	38-1/2 in
Max Velocity	1031 FPM – Water Penetration ft/min
Depth	4 in
Height	26-1/2 in
Inside Height	35-1/2 in
Free Area	2.76 ft³
Inside Width	23-1/2 in
Rough Opening	36W x 24H in
Weight	21 lbs
Warranty	1 yr
