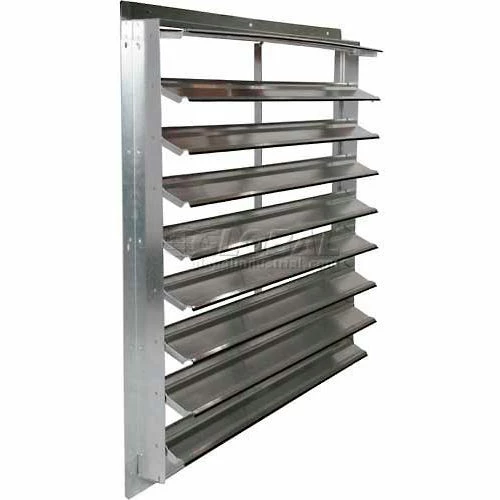

Air Conditioning Products Exhaust Shutter 16" - 556-STD-16

Original price was: $75.95.Current price is: $53.17.

SKU: Air Conditioning Products WBB484672 Categories: HVAC Hardware & Parts, Louvers & Vents Tags: 556-STD-16, Air Conditioning Products, Aluminum/Galvanized Steel, Gravity Shutters, HVAC & Fans, Mill Finish, Rear Flange, Vertical

Safe Payments, Happy Customers
Shop quality, shop with us.
Control the delivery date and try to deliver it in the fastest time
Satisfaction Guaranteed

The Model 556 is a counter balanced rear flanged vertical mount automatic exhaust shutter. It is designed to allow horizontal airflow in one direction and to prevent reverse airflow while providing protection from environmental elements when the airflow stops. The blades open with airflow and minimize the wear load on the fan motor and close by gravity when the fan shuts down. counter balanced blades allow the shutter to be mounted vertically to 45 degrees and has flanged ends for added weather protection. Ideal for direct-drive or belt-driven exhaust fans. Do not use with vane axial or tube axial fans.

MADE IN THE USA

Max Velocity (per Minute)	2500 ft/min
Rough Opening	16-1/2 X 16-1/2 in
Max Pressure In W.G.	1 in
Inside Width	16 in
Inside Height	16 in
Height	19 in
Depth	2-1/2 in
Width	19 in
Type	Gravity Shutters
Mounting Position	Vertical
Flange Style	Rear Flange
Finish	Mill Finish
Material	Aluminum/Galvanized Steel
Manufacturers Part Number	556-STD-16
Brand	Air Conditioning Products
