Name: Lightweight design Air Conditioning Products Low Velocity Exhaust Shutter 12" - 502-STD-12 - Fanclaw.com
SKU: Air Conditioning Products WBB484664
Price: 32.87 USD
Availability: InStock

Sale!

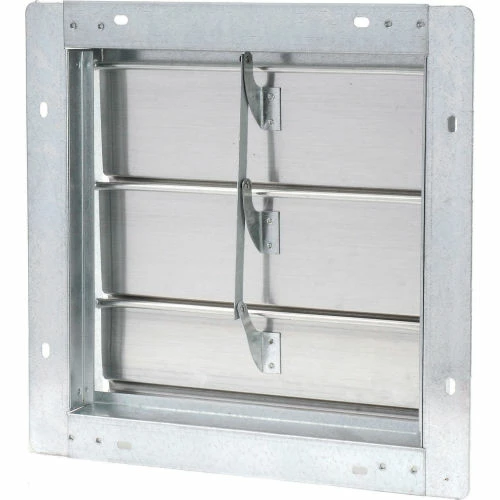

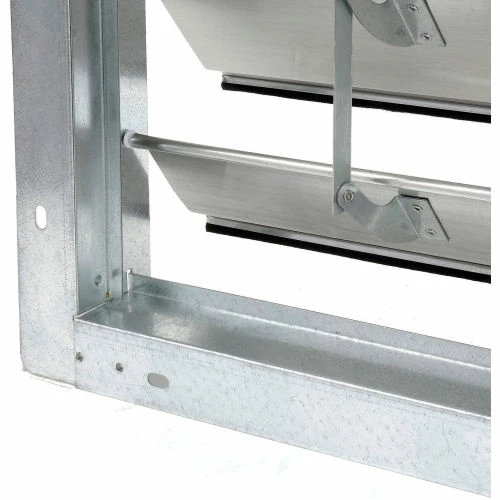

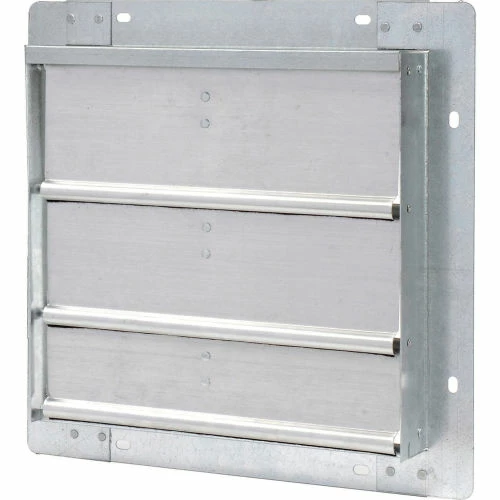

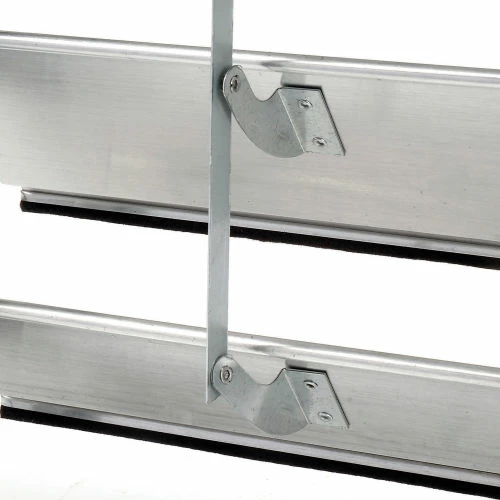

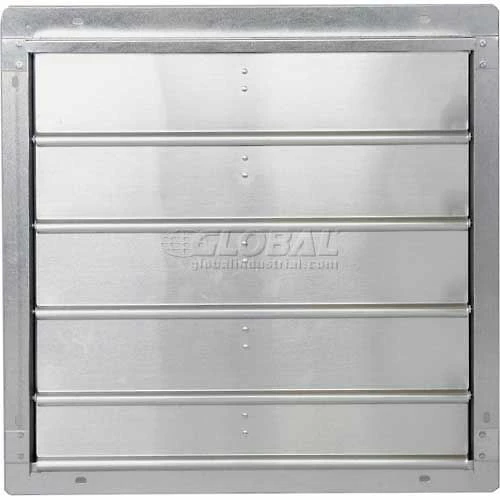

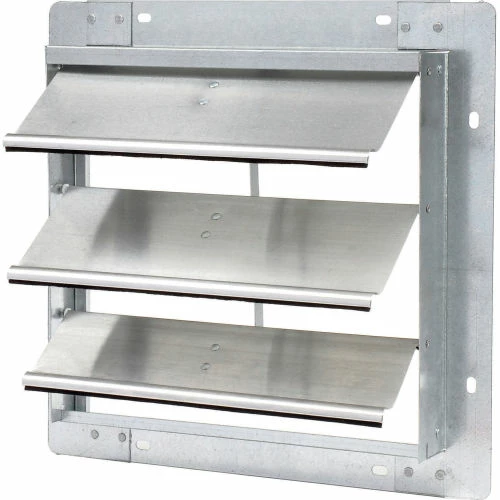

Air Conditioning Products Low Velocity Exhaust Shutter 12" - 502-STD-12

Air Conditioning Products Low Velocity Exhaust Shutter 12" - 502-STD-12 - Image 2

Air Conditioning Products Low Velocity Exhaust Shutter 12" - 502-STD-12 - Image 3

Air Conditioning Products Low Velocity Exhaust Shutter 12" - 502-STD-12 - Image 4

Air Conditioning Products Low Velocity Exhaust Shutter 12" - 502-STD-12 - Image 5

Air Conditioning Products Low Velocity Exhaust Shutter 12" - 502-STD-12 - Image 6

Air Conditioning Products Low Velocity Exhaust Shutter 12" - 502-STD-12 - Image 7

Air Conditioning Products Low Velocity Exhaust Shutter 12" - 502-STD-12 - Image 8

Air Conditioning Products Low Velocity Exhaust Shutter 12" - 502-STD-12 - Image 9

Air Conditioning Products Low Velocity Exhaust Shutter 12" - 502-STD-12 - Image 10

Air Conditioning Products Low Velocity Exhaust Shutter 12" - 502-STD-12 - Image 11

Air Conditioning Products Low Velocity Exhaust Shutter 12" - 502-STD-12 - Image 12

Original price was: $46.95.Current price is: $32.87.

SKU: Air Conditioning Products WBB484664 Categories: HVAC Hardware & Parts, Louvers & Vents Tags: 502-STD-12, Air Conditioning Products, Aluminum/Galvanized Steel, Gravity Shutters, HVAC & Fans, Rear Flange, Vertical

Safe Payments, Happy Customers
Shop quality, shop with us.
Control the delivery date and try to deliver it in the fastest time
Satisfaction Guaranteed

The Model 502 is an economy rear flanged vertical mount automatic exhaust shutter. It is designed to allow horizontal airflow in one direction and to prevent reverse airflow while providing protection from environmental elements when the airflow stops. The blades open with airflow and close by gravity when the fan shuts down. Ideal for direct-drive or belt-driven exhaust fans. Do not use with vane axial or tube axial fans.

MADE IN THE USA

Max Velocity (per Minute)	2,000 ft/min
Rough Opening	12-1/2 x 12-1/2 in
Max Pressure In W.G.	1 in
Inside Width	12 in
Inside Height	12 in
Height	15 in
Depth	2-1/4 in
Width	15 in
Type	Gravity Shutters
Mounting Position	Vertical
Flange Style	Rear Flange
Material	Aluminum/Galvanized Steel
Manufacturers Part Number	502-STD-12
Brand	Air Conditioning Products
