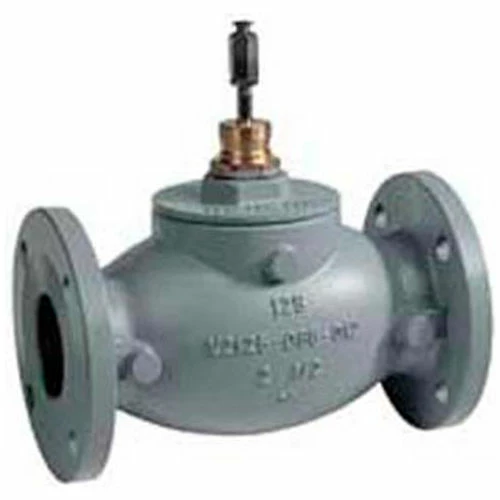

Honeywell Flanged Glove Valve VGF21LP25, 2-Way, 2-1/2" Pipe

Features

• VGF Flanged Globe Valves are used for 2-position or modulating control of steam, hot water, or chilled water-glycol solutions up to 50 percent concentration in closed loop heating, ventilation and air conditioning (HVAC) systems. They can be operated by ML6984/ 7984, ML6420/6425, ML6421/7421 Electric Linear Actuators, MP953Pneumatic Actuators, Modutrol Motors with Q5001 valve linkage, or MN/MS Series Direct Coupled Actuators with Q5020 or Q5022 valve linkages
• ANSI Class 125 and Class 250 cast iron bodies with flanged end connections
• Equal percentage and linear flow characteristics
• Face-to-face flange dimensions per ANSI/ISA S75.03 standard
• Sizes from 2-1/2 to 6 in
• Stainless steel trim standard for long life span
• ANSI Class III or IV seat leakage
• Steam inlet pressure up to 125 PSIg and 353 F maximum temperature
• Self-adjusting packing
• Accurate positioning with equal percentage and linear flow characteristics to ensure precise temperature control
• Universal bonnet for direct-coupled electric and pneumatic actuators for easy mounting
• Not suitable for combustible gasses
