Hydrolevel Safgard™ 1100 Series Low Water Cut-Off, W/Auto Reset, Burner Circuit Test Button, 24V

Original price was: $142.95.Current price is: $92.99.

SKU: Hydrolevel WBB974626 Categories: HVAC Hardware & Parts, Hydronic Hardware & Parts Tags: 24 V, 250 °F, Automatic Reset, Burner Circuit Test Button, Power and Low Water LED Indicators, Black, Hot Water, HVAC & Fans, Hydrolevel, SPST

Safe Payments, Happy Customers
Shop quality, shop with us.
Control the delivery date and try to deliver it in the fastest time
Satisfaction Guaranteed

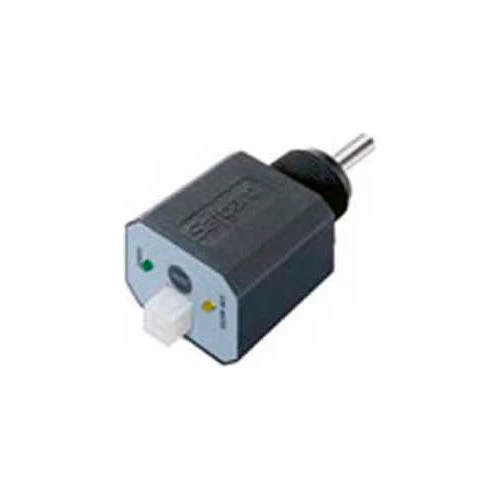

Safgard™ 1100 Series Low Water Cut-Off, W/Auto Reset, Burner Circuit Test Button, 24V

Interrupts power immediately in a low water condition. Automatically restarts burner on return of water level. Features test button, onboard indicating lights and easy to follow installation instructions. Model 1100 includes plug-in wire harness with labeled quick-connect terminals. Model 1100 is available with additional wiring harnesses for popular boilers. Can be installed directly into the boiler if a suitable tapping is available . The unit can also be installed in the boiler piping using a standard 3/4″ tee. Made in the USA.

Click for Instructions

Weight	1.5 lbs
Voltage	24 V
Brand	Hydrolevel
Max Pressure	160 psi
Power Consumption Volt Amps	1 A
Manufacturers Part Number	1100
Switching Capacity	125 Volt Amps
Includes	Automatic Reset, Burner Circuit Test Button, Power and Low Water LED Indicators
Max Water Temperature	250° F
Height	1-3/8 in
Switch Contacts	SPST
Color Family	Black
Type	Hot Water
Width	1-5/7 in
Depth	3-3/4 in
NPT	3/4 in
Warranty	1 yr
