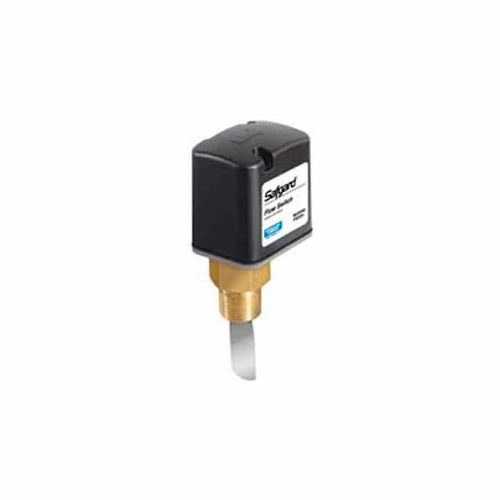

Hydrolevel Safgard™ Model FS204 Liquid Flow Switch

Original price was: $183.95.Current price is: $95.99.

SKU: Hydrolevel WBB974614 Categories: HVAC Hardware & Parts, Hydronic Hardware & Parts Tags: 1" to 6" pipe sizes, 250°F (121°C) °F, 32°F (0°C), Anodized cast aluminum, Black, HVAC & Fans, Hydrolevel, SPDT switch 7.4 FLA, 44.4 Locked Rotor Amp @120VAC Motor Duty

Safe Payments, Happy Customers
Shop quality, shop with us.
Control the delivery date and try to deliver it in the fastest time
Satisfaction Guaranteed

Safgard™ Model FS200 Liquid Flow Switch

EPDM seal for superior performance over mechanical bellows. Universal design replaces flow switches by Mcdonnell Miller, Penn, Taco, Potter, Watts and others. Single pole double throw switch for operating signal devices, motors, alarms, metering devices and heating units. Includes four heavy duty stainless steel paddles. Two 7/8″ electrical knock-outs for 1/2″ conduit. For use on 1″ to 6″ diameter pipe. 1″ Npt pipe connection. Made in the USA.

Click For Instructions

Weight	2.5 lbs
Control Chassis Material	Anodized cast aluminum
Brand	Hydrolevel
Max Pressure	160 psi
Pilot Duty Rating	125VA@120/240VAC
Enclosure	NEMA 4 Wet Locations
Manufacturers Part Number	FS204
Control Cover Material	Powder coated cast aluminum
Min Fluid Temperature	32°F (0°C)
Height	13-1/2 in
For Use With	1" to 6" pipe sizes
Contacts	SPDT switch 7.4 FLA, 44.4 Locked Rotor Amp @120VAC Motor Duty
Color Family	Black
Max Fluid Temperature	250°F (121°C) °F
Width	2-7/8 in
Depth	5-4/5 in
Warranty	1 yr
