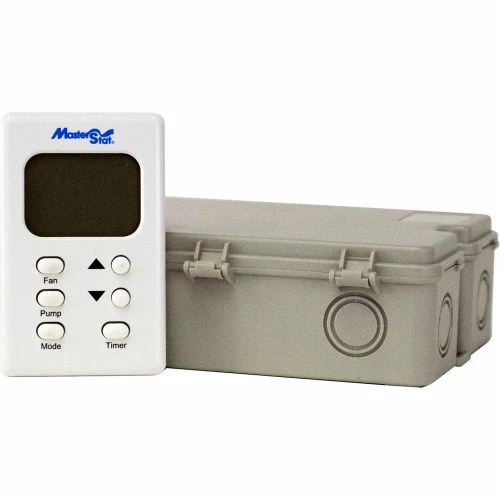

MasterStat Digital Evaporative Cooler Thermostat 110423-2

The MasterStat digital thermostat is designed to operate a 2-speed fan motor, a small water pump motor, and an optional water purge pump. It has a easy to read backlit LCD display. It also features a pre-wet mode to ensure your pads are full saturated prior to the pump being activated. Designed to control any ducted evaporative cooler with a 2-speed motor up to 1HP @ 120 V or 2HP @ 240 V,Easy to install in an existing outlet box – minimal wiring required,If power is interrupted while unit is operating, the unit will resume in the mode active during power loss,The onboard sensor has a control range of 50 to 90 degrees F,Control box dimensions are 6.25″w x 8″h x 2.38″ d, Kit includes wall control thermostat, 2-speed control, wire nut for common earth connection; spare 3.15 Amp fuse for control, jumper wire for link to N-link. Works with any ducted evaporative cooler with a 2-speed motor up to 1HP @ 120 V or 2HP @ 240 V
