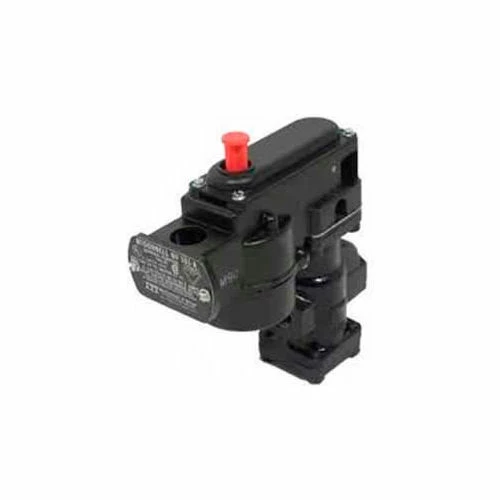

McDonnell & Miller Series 101-A Electric Water Feeder 120V For Steam Boilers

For low pressure steam boilers with cold water feed. Eliminates necessity to manually add water to the boiler. Can be used with mechanical or electronic low water cut-off controls. Quick-change replaceable cartridge valve and strainer. Manual feed button. Model 101-A features a 120 VAC solenoid. Model 101-A-24 features a 24 VAC solenoid and a separate 50VA transformer. Maximum water supply pressure 150 psi (10. 5 kg/cm2). Maximum boiler pressure 25 psi (1. 8 kg/cm2). Maximum inlet water temperature 120°F (49°C). Maximum power consumption – 40 VA at 24 VAC – 40 VA at 120 VAC. Made in the USA.
