Name: Lightweight design TPI 1/4 HP Motor For Fixed & Industrial Fans, model 7963302, 7900/6800CFM - Fanclaw.com
SKU: TPI WB245942
Price: 98.99 USD
Availability: InStock

Sale!

TPI 1/4 HP Motor For Fixed & Industrial Fans, model 7963302, 7900/6800CFM

TPI 1/4 HP Motor For Fixed & Industrial Fans, model 7963302, 7900/6800CFM - Image 2

TPI 1/4 HP Motor For Fixed & Industrial Fans, model 7963302, 7900/6800CFM - Image 3

TPI 1/4 HP Motor For Fixed & Industrial Fans, model 7963302, 7900/6800CFM - Image 4

TPI 1/4 HP Motor For Fixed & Industrial Fans, model 7963302, 7900/6800CFM - Image 5

TPI 1/4 HP Motor For Fixed & Industrial Fans, model 7963302, 7900/6800CFM - Image 6

TPI 1/4 HP Motor For Fixed & Industrial Fans, model 7963302, 7900/6800CFM - Image 7

TPI 1/4 HP Motor For Fixed & Industrial Fans, model 7963302, 7900/6800CFM - Image 8

Original price was: $149.95.Current price is: $98.99.

SKU: TPI WB245942 Categories: Fan & Blower Motors, HVAC Hardware & Parts Tags: 1/4 HP, 2, 6800 CFM, Assembled, Gray, HVAC & Fans, Industrial, TPI

Safe Payments, Happy Customers
Shop quality, shop with us.
Control the delivery date and try to deliver it in the fastest time
Satisfaction Guaranteed

TPI REPLACEMENT MOTORS

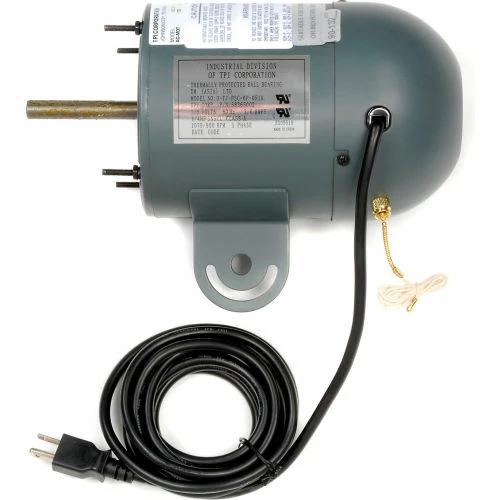

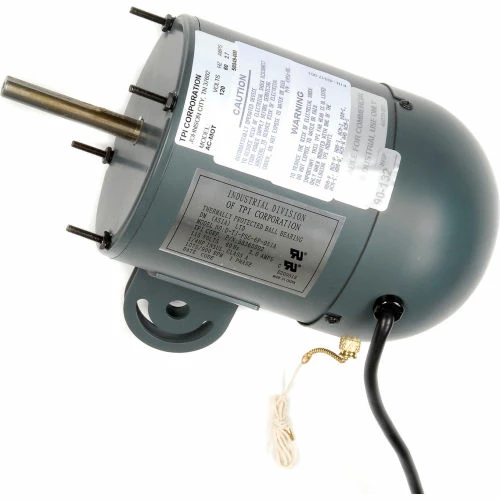

1/4 HP Motor for Fixed 24″ & 30″ Industrial Fans
These TPI replacement motors help replace or upgrade old, worn out and broken motors. TPI motors feature 2-speed operation with pull chain control. Single-phase ball bearing motors are totally enclosed and permanently lubricated for long life and low maintenance. Permanent split capacitor (PSC-type) motor has a 1/2″ diameter x 3.13″ length shaft. Includes 12’L SJT type, 3-conductor power cord. 120V. UL Listed ,cETL Listed. 1 Year Limited Warranty. Horsepower rating based upon maximum speed/load.

Assembly Required	Assembled
Voltage	120 V
Warranty	1 yr
Brand	TPI
Manufacturers Part Number	ACMOT
Features	Pull Chain
Oscillating/Non Oscillating	Non-Oscillating
Phase	1
CFM High	7900 CFM
Material	Steel
Motor Type	Totally Enclosed
Type	Industrial
CFM Low	5,000 CFM
RPM High	1,075 rpm
For Use With	24" & 30"
Amperage	2.7 A
Number of Speeds	2
Color Family	Gray
CFM Medium	6800 CFM
Horsepower	1/4 HP
Certifications	UL, cUL Listed
